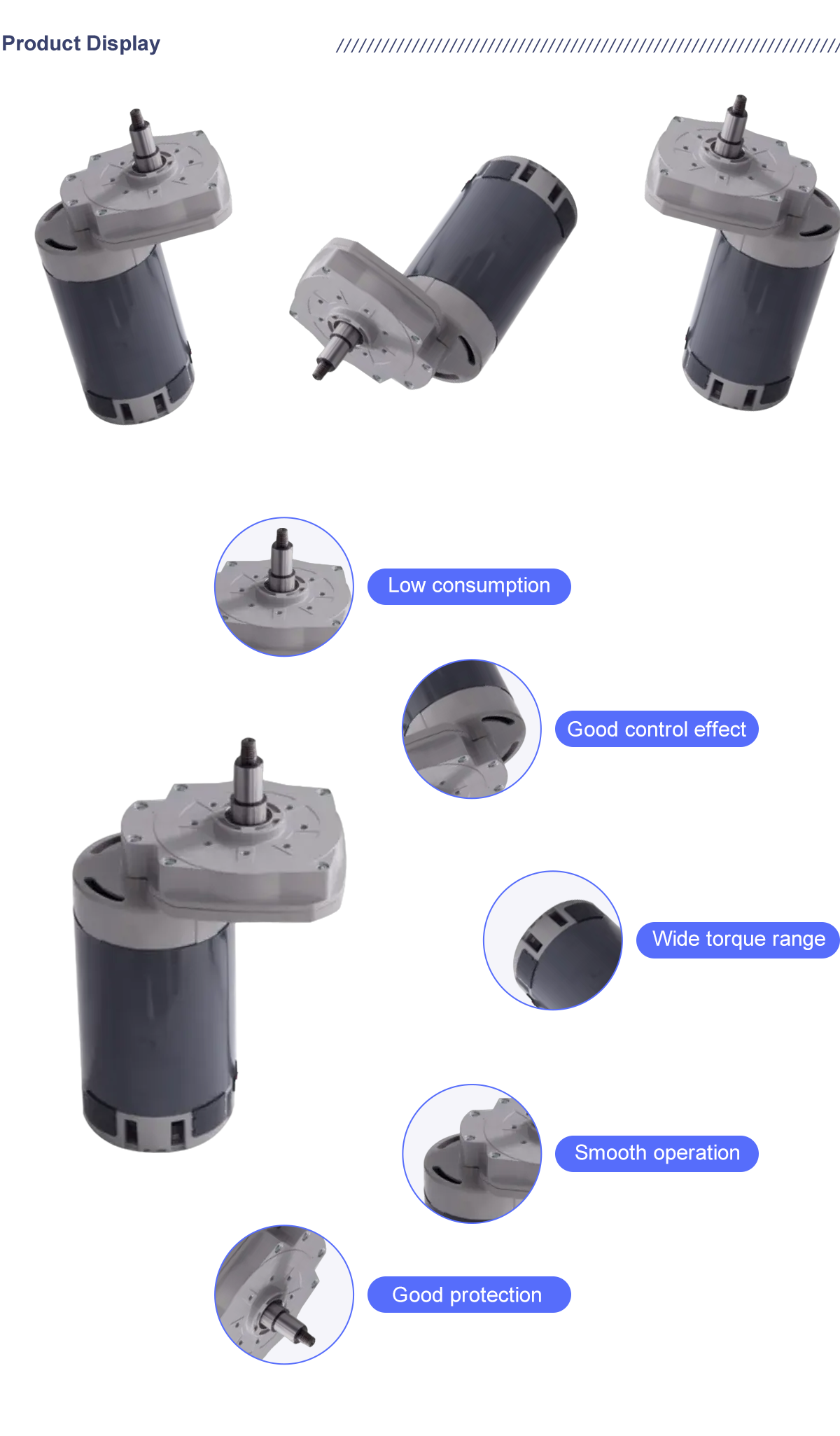

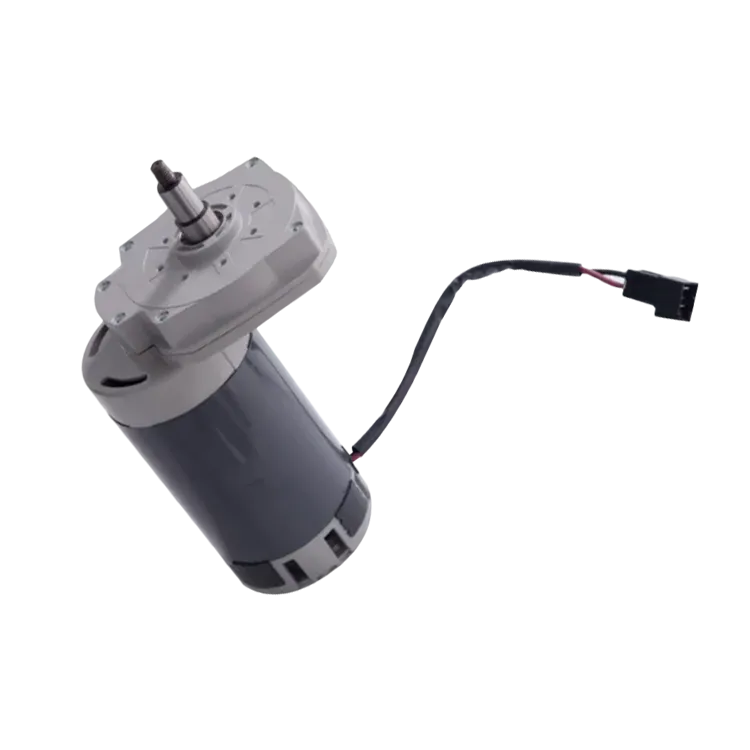

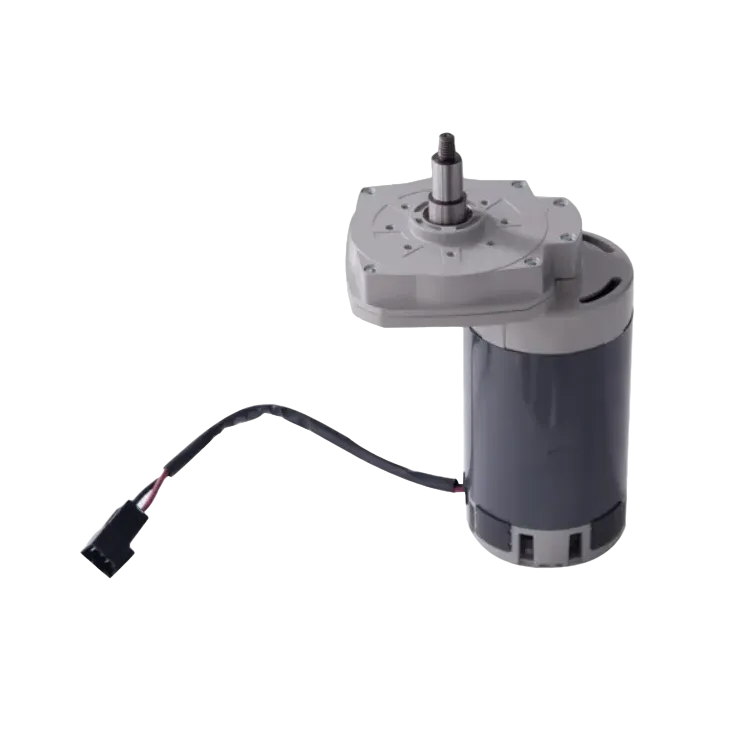

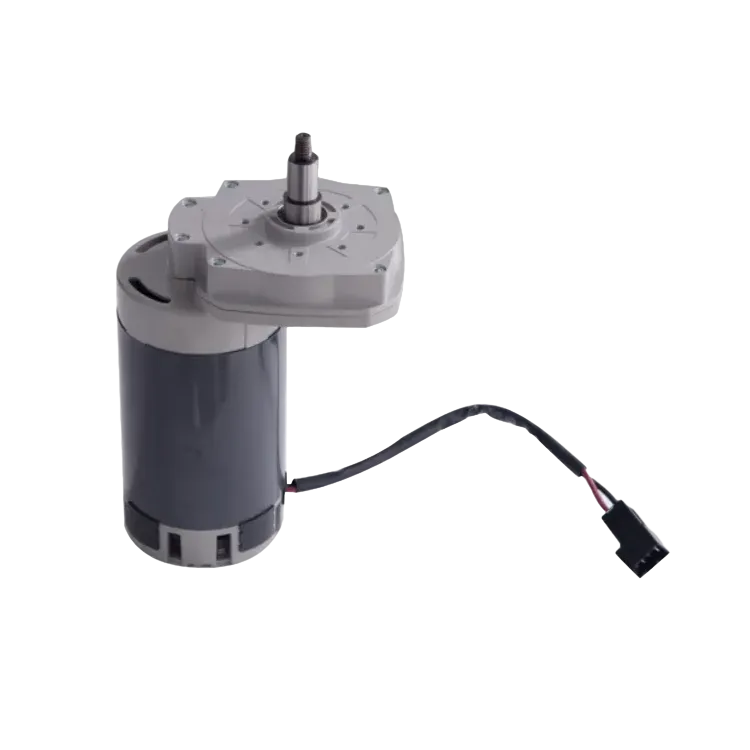

This 550W 24V brushed DC high torque motor provides reliable, powerful performance and is perfect for a variety of applications. With a gear ratio of up to 1:100, it offers unbeatable torque and speed. It is designed for high stability and has low noise a
Motor Type Torque Motor
Output Power (W) 550
Voltage (V) 24
Rated Speed (rpm) 1800
Rated Torque (N.m) 1.34
| Basic Parameter | ||
|
Type |
ZDSJ-24310GU-18S-N |
ZDSJ1-24550GU-15S-N-00001 |
|
Rated voltage |
24VDC |
24VDC |
|
Rated power |
310W |
550W |
|
Rated current |
16A |
33A |
|
Rated speed |
1800rpm土10% |
1500rpm土10% |
|
Rated torque |
1.64N.m |
3.5N.m |
|
Noload current |
<4A |
s5.5A |
|
Noload speed |
2300rpm土10% |
1900rpm土10% |
|
Work duty |
S2-30min |
S1 |
|
Insulation resistance |
>20MQ |
>20MQ |
|
Brush life |
1000h |
1500h |
|
Electrical strength |
660V/S |
660V/S |
|
Insulation class |
B |
B |
|
Protection grade |
IP00 |
Ip00 |
|
Ambient temperature |
-10°C~+40°C |
-10°C~+40°C |
|
Noise |
<60dB(L=100cm) |
<65dB(L=100cm) |
|
Ratio |
10:1 |
10:1 |
|
Rated output speed |
14.8N.m |
31.5N.m |
|
fficiency |
90% |
90% |
|
Wire diagram |
redt CW *(G/M) 24VDC black red CCW( (G/M 24VDC black |
|
