AF Series Reducer

65$ - 369$

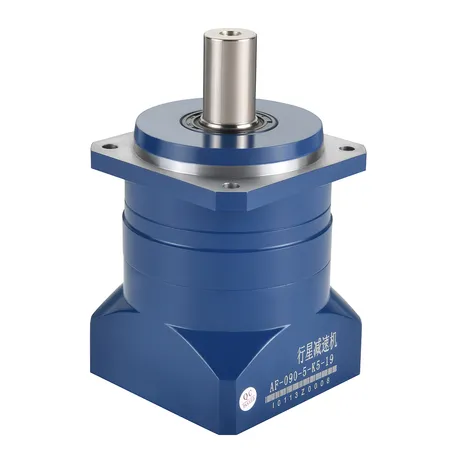

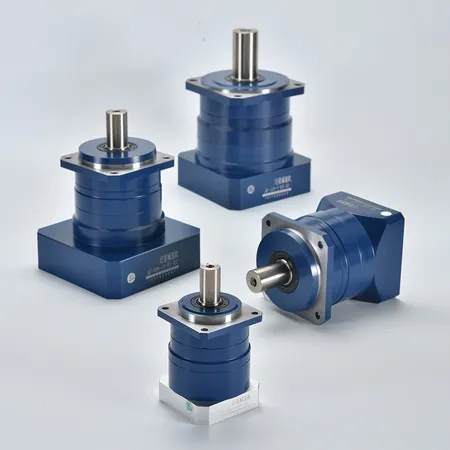

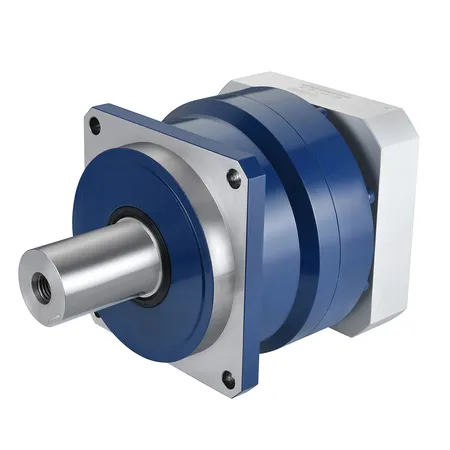

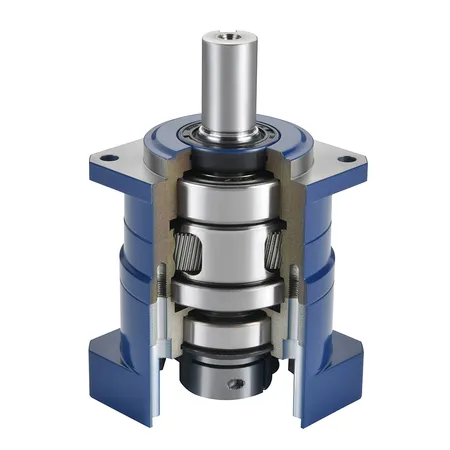

The AF Series Reducer offers reliable, efficient performance with its durable, compact construction. Its small size allows easy installation in a variety of power transmission systems for improved power transmission efficiency and a longer service life.

Motor Type Gearbox

Output Power (W) -

Voltage (V) -

ratio 3-30

Model Unit AF060 AF090 AF115 AF140 AF180 Ratio Stage
Rated output torque N.m 18 50 120 240 600 3 1
27 75 180 360 750 4
27 75 180 360 750 5
27 75 180 360 750 7
18 50 120 240 500 10
35 90 180 450 650 15 2
37 96 230 450 1050 16
37 96 230 564 1000 20
37 96 255 585 1000 25
37 96 230 564 1050 28
27 87 180 360 800 30
37 96 255 585 1000 35
37 96 230 564 1000 40
37 96 255 585 1000 50
27 87 180 360 800 70
18 50 120 240 710 100
Emergency stop torque N.m 3 times Rated output torque
Norminal input speed rmp 3000 3000 3000 2000 1500
Maximum input speed rmp 6000 6000 6000 3500 3000
Maximum radial force N 1200 2400 4300 9100 15000
Maximum axial force N 1100 2200 3900 8200 14000
Efficiency % Single [97%] Double [95%]
Average lifetime h 20000
Weight kg 1.4 3.7 8 16 36 1
1.6 4.2 8.9 18 39 2
Moment of inertia kgcm2 0.16 0.61 3.25 12.31 28.98 3 1
0.14 0.48 2.74 7.54 23.67 4
0.13 0.47 2.71 7.42 22.75 5
0.13 0.47 2.62 7.25 22.48 7
0.13 0.44 2.57 7.14 22.55 10
0.127 0.72 2.56 12.35 12.35 15 2
0.088 0.5 1.75 7.47 7.54 16
0.075 0.44 1.5 6.65 7.42 20
0.075 0.44 1.49 5.81 7.54 25
0.064 0.39 1.3 6.34 7.14 28
0.064 0.39 1.3 6.34 7.14 30
0.064 0.39 1.3 6.34 7.14 35
0.064 0.39 1.3 4.08 7.14 40
0.075 0.39 1.5 7.5 7.54 50
0.075 0.39 1.5 7.5 7.54 70
0.075 0.39 1.5 7.5 7.54 100
Backlash arcmin ≤3 ≤3 ≤3 ≤3 ≤3 Precise[1]
≤5 ≤5 ≤5 ≤5 ≤5 Standard[1]
≤5 ≤5 ≤5 ≤5 ≤5 Precise[2]
≤7 ≤7 ≤7 ≤7 ≤7 Standard[2]
Torsional rigidity N.m/arc min 7 14 25 50 145
Noise dB 60 62 62 68 70
lubricating Synthetic grease lubrication
levels of protection IP65
