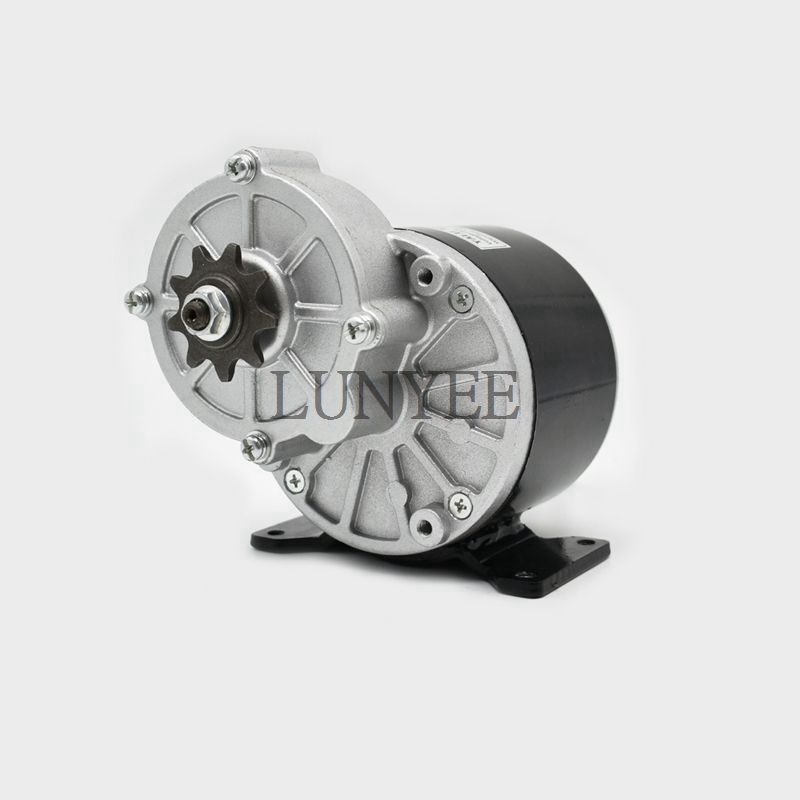

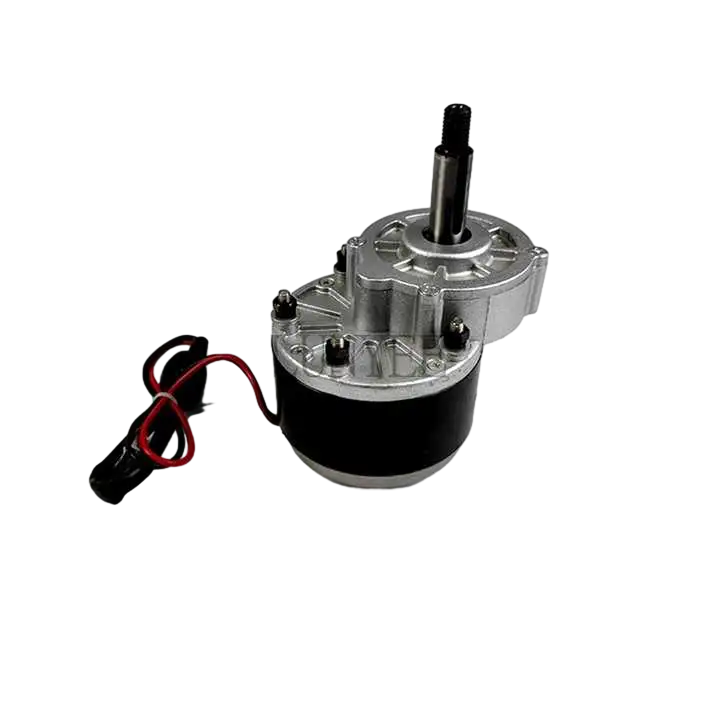

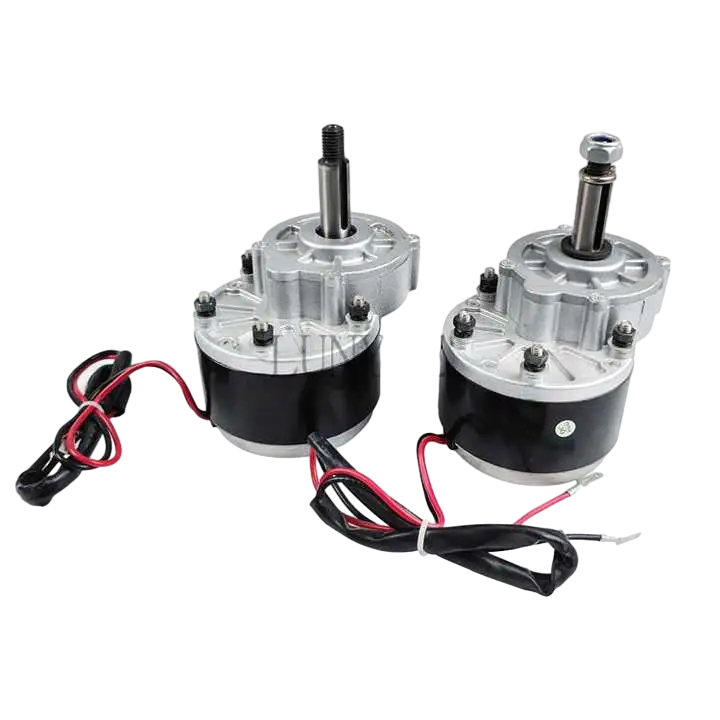

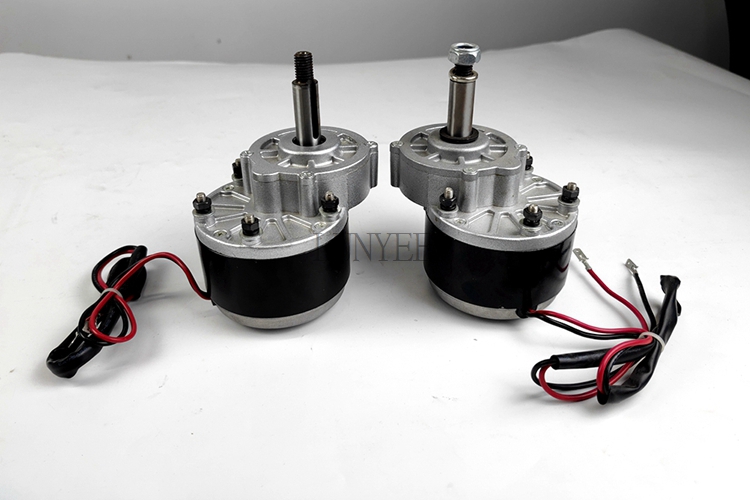

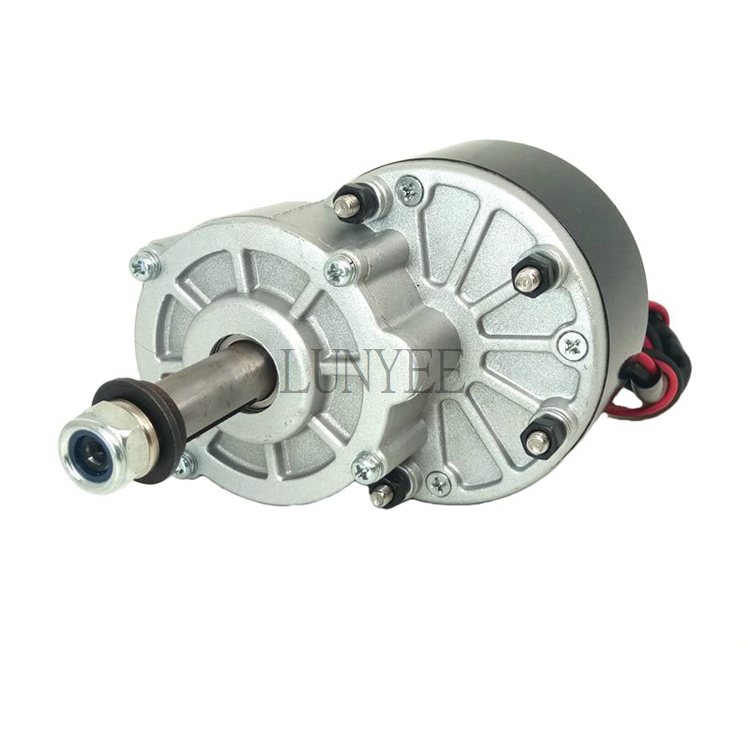

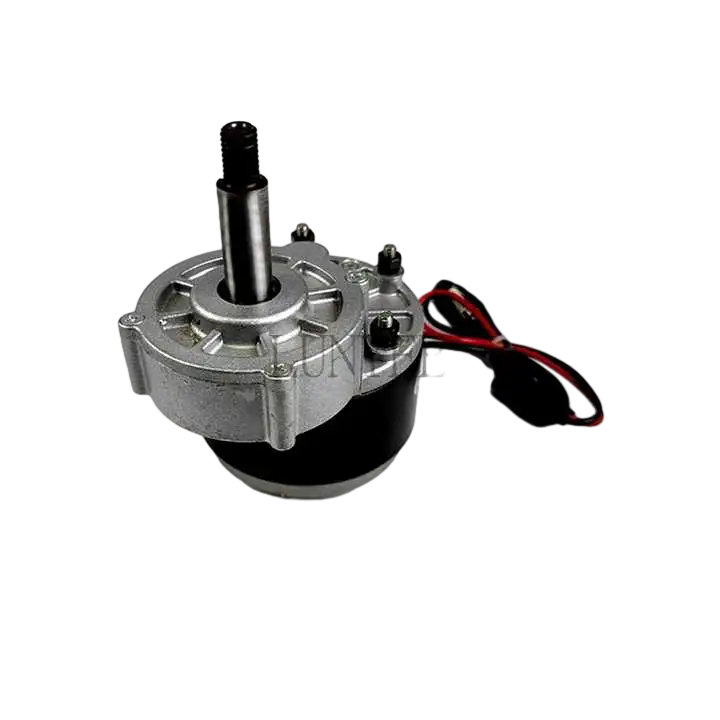

pully gear shaft type MY1016 24v 36v 250w 350w dc geared motor electric motors for vehicles

SGD 35.22 - SGD 46.16

This MY1016 24V 36V DC Geared Motor is designed for vehicles, featuring a pull gear shaft type. It has a power output of 250W-350W, making it an ideal choice for your automotive drive system requirements.

Rated power 250W/350W

Rated voltage 24VDC/36VDC

Rated speed 3000RPM

Rated torque 0.80N.m/1.10N.m

MODEL MY1016Z2 MY1016Z3
Rated power 250W 250W 350W 350W
Rated voltage 24VDC 36VDC 24VDC 36VDC
Rated speed 3000RPM 3000RPM 3000RPM 3000RPM
No-load speed 3850RPM 3850RPM 3850RPM 3850RPM
Rated current ≤13.4A ≤9.0 ≤18.7A ≤12.5A
No-load current ≤2.2A ≤2.0A ≤2.2A ≤2.0A
Rated torque 0.80N.m 0.80N.m 1.10N.m 1.10N.m
Effiency ≥78% ≥78% ≥78% ≥78%
Ratio 1:9.78
Application electric motors for vehicles, electric bicycles,agricultural machinery, noodle machine, sugar cane machine, oven elevator
pully gear shaft type MY1016 24v 36v 250w 350w dc geared motor electric motors for vehicles pully gear shaft type MY1016 24v 36v 250w 350w dc geared motor electric motors for vehicles pully gear shaft type MY1016 24v 36v 250w 350w dc geared motor electric motors for vehicles pully gear shaft type MY1016 24v 36v 250w 350w dc geared motor electric motors for vehicles
